Skeleton Plotting Absent and False Rings

How to mark ring-growth anomalies on a skeleton plot:
  • Missing Ring:
    • Sample at left didn't have a ring for year 1905 of the chronology (index value of 0.0)
    • A dashed mark is drawn on the skeleton plot between the 19th and 20th lines
    • Try This: Move skeleton plot one position to the right

  • False Ring
    • Sample at right had a false ring for year 1925 of the chronology (index value of 2.0)
    • Diagonal marks are drawn on the skeleton plot on the 39th line
    • Try This: Move skeleton plot one position to the left
Good idea: Hit the "Try again" button to see more examples

When you try skeleton plotting for yourself, you can turn on or off ring-growth anomalies:

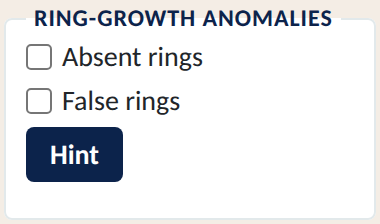

  • There will be check boxes for absent or false rings, as on the right
    • Check one or both options to allow these growth anomalies
    • Un-Check the options to disallow these growth anomalies
    • Mouse click the "Restart a new core" button
  • Important point #1: With options checked:
    • Ring-growth anomalies are only possible, not for certain (just like in real life!)
    • Mouse click the "Hint" button to learn if your new core has ring-growth anomalies
    • Mouse click the "Hint" button again to hide the hint
  • Important point #2:
    • When there are absent/false rings, include their dates when you find the dates
Ring-growth anomalies options: Absent rings and False rings check boxes and a Hint button
